February 2000
editor@os2voice.org

Epson Inkjet Printer Model Number and OS/2 Driver Version Cross Reference

By: Don(ald) O. Woodall dwoodall@mail.iserv.net

Epson Driver Information

A few months ago, I bought a users manual for an Epson Stylus Color 400. Now "Epson Accessories, Inc." sends me a catalog every couple of months. So the vast majority of printer models listed below were culled from the listing of Inkjet cartridges and the printer models they work in.

There are at least five existing drivers for the various models of Epson Inkjet printers. These include IBM's own OMNI printer driver support; two beta drivers done by Epson Germany; the EPOMNI driver by Epson Japan and the recently released Epson2 driver. Which drivers support which models has always been a point of some confusion. Following is a description of each driver and a set of cross reference tables showing which printers are known to support which printer models.

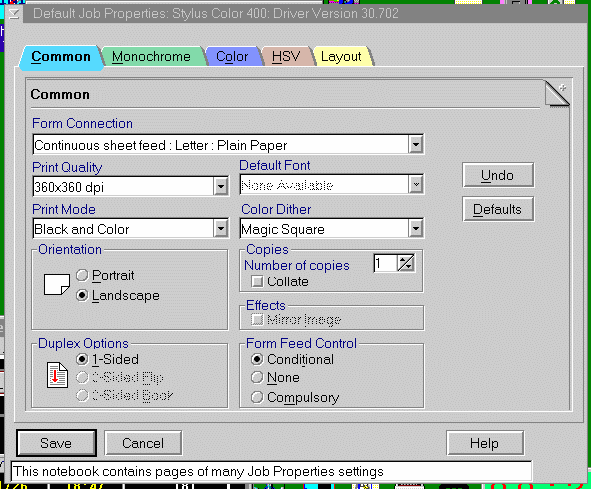

The IBM Omni Driver

OMNI.EXE Version 30.702 is what I had installed at the time I created this document.

The printer model numbers the Omni Driver supports were obtained by pretending to install a new printer driver and then reviewing the list of supported printers. This is the standard printer driver that comes with OS/2 and includes support for many printer brands besides Epson. It continues to receive periodic updates by IBM.


This driver can be downloaded from the following location.

FTP
ftp://service.boulder.ibm.com:/ps/products/os2/os2ddpak

The Epson Germany 1.011 Driver

The file "epson1011.zip" is the driver archive file. The 'read-only' files are the result of unzipping the archive file. The file "1011-printers" is an edited part of the 'readme.txt' file. It is what I used to determine which printer models are supported by the 1011 version of the Epson Printer Driver. According to Mark Dodel "This added 1440x720DPI support for some printers capable of that resolution, but tends to be slow. This driver was superseded by the 1.020 release."

A 12-20-99 4:16:24a 4893759 epson1011.zip
A R 7-21-97 11:48:04a 4909012 EPSONPRT.DR_
A R 7-21-97 11:47:02a 5580 EPSONPRT.EA_
A R 10-02-97 1:42:44p 10829 LIESMICH.TXT
A R 10-02-97 1:46:40p 10867 LIESMICH.WIN
A R 10-02-97 1:52:52p 10069 README.TXT

This driver can be downloaded from the following location.

FTP
ftp://ftp.leo.org:/pub/comp/os/os2/leo/drivers/printer

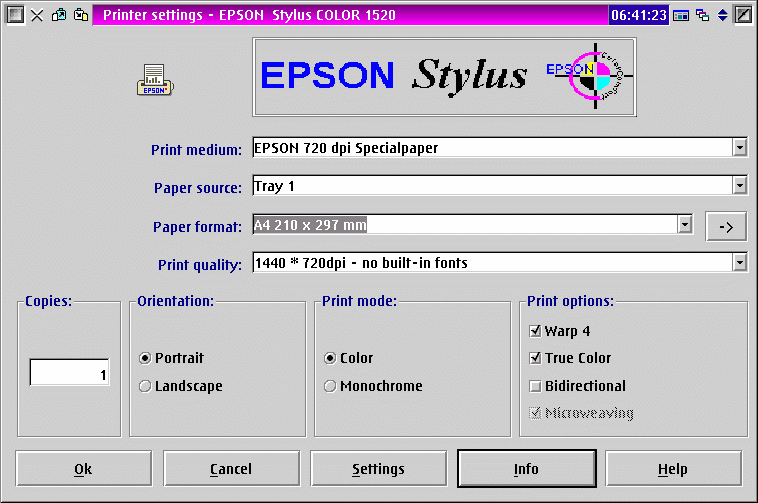

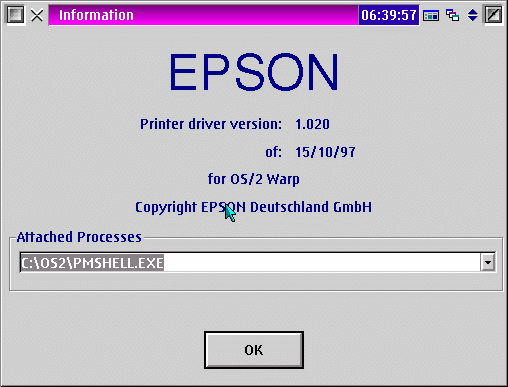

The Epson Germany 1.020 Driver

The file "ep1020.exe" is the driver archive file. The next four files are the result of unzipping the archive file. The file "1020-printers" is an edited part of the 'readme.txt' file. It is what I used to determine which printer models are supported by the 1020 version of the Epson Printer Driver. The rest of the files contain info on where to get the driver and the necessary password ("Epson" and it is case sensitive) to unarchive the actual drivers, etc.

According to Mark Dodel, "Like the 1.011 driver this driver has 1440x720DPI support for some printers, but is slower then the OMNI driver. One problem with this driver was that it only seemed to support the higher resolution in European paper sizes(A3, A1, etc). This driver never seemed to have much support from Epson Germany, and at one point Epson Germany stated they were dropping all OS/2 development. As alarming as that sounds, it seems that support was picked up by Epson Japan(see the EPOMNI driver that follows). The install asks what language support you want - English or German, with code page support for English being 437,850-853,857,860-866 and code page support for German being 437,850,852,853,857,861,865."

While Bruce LaZerte added "The *OLD* german driver (EPSONPRT) was great for photos but slow and had some bugs. Originally you had to buy it on CDROM, but then they stopped working on it and gave it away free. I've stopped using it too."

A 6-16-99 8:00:00p 4708495 ep1020.exe
A 10-15-97 2:30:54p 4671546 epsonprt.dr_
A 10-15-97 2:29:34p 5590 epsonprt.ea_
A 12-07-98 5:33:28p 11792 liesmich.txt
A 12-07-98 5:34:32p 10672 readme.txt
A 12-07-98 5:34:32p 10672 readme.1020warpstock



This driver can be downloaded from the following locations.

FTP
ftp://ftp.epson.de/pub/de/driver/os2

HTTP
http://www.epson.de/support/download

The Epson Japan EPOMNI Driver

The file "epomni.exe" is the driver archive file. The rest of the files are result of unarchiving the archive file. In other words, at a command prompt type "epomni <CR>". Both the "readme" and "epomni.lst" files contain a list of printers supported by this driver.

According to Bruce LaZerte "The best driver is EPOMNI which came out about a year and a half ago. It's great and reasonably fast for photos and text. It's about as good as the Winxx driver, has all the nozzle clearing and adjustment utilities etc. This one I use all the time."

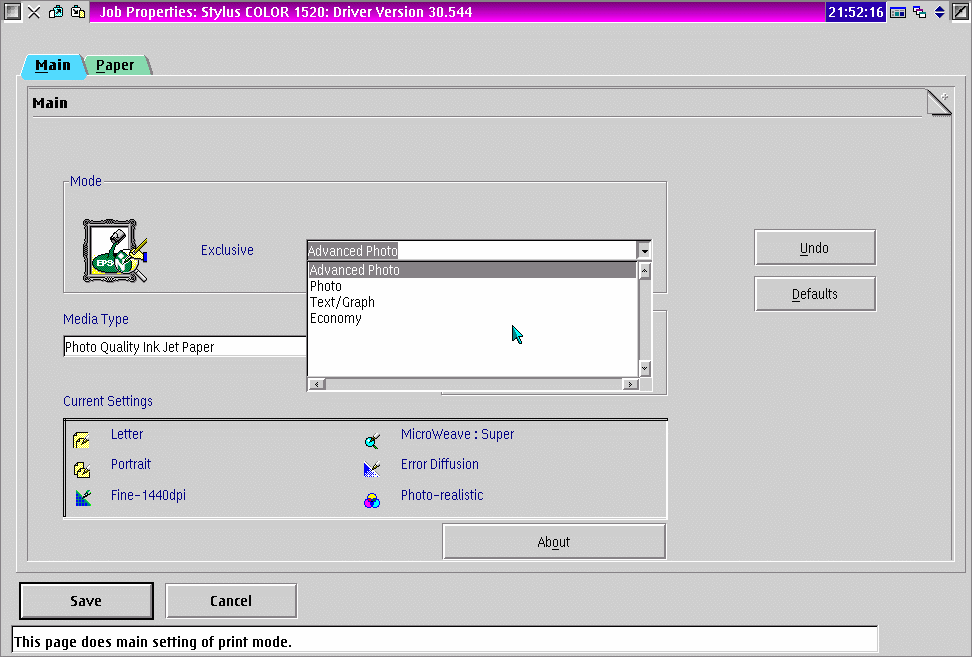

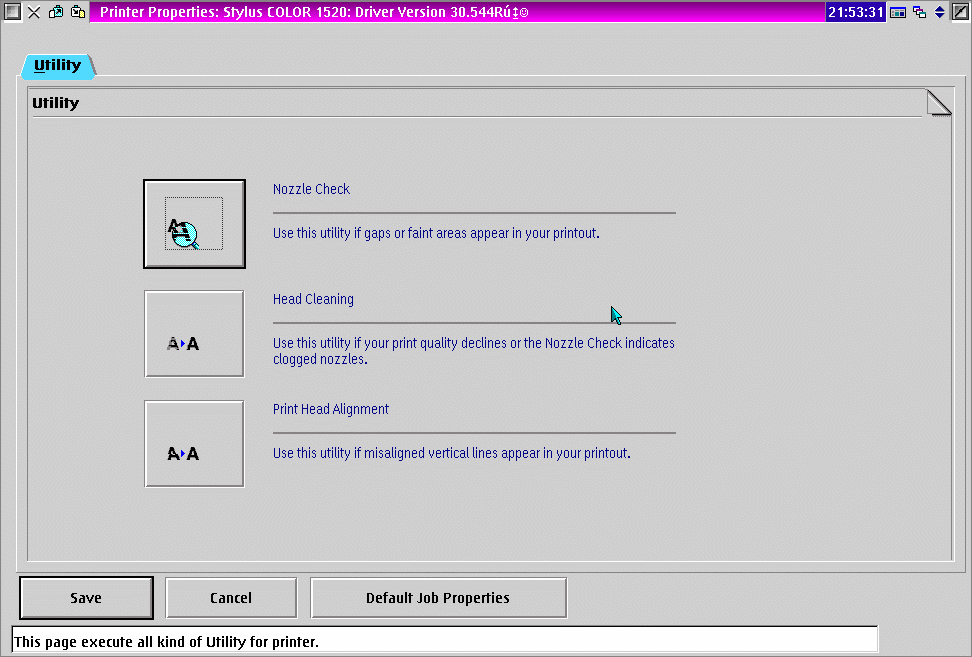

And about this driver Mark Dodel states "Though somewhat limited in printer models supported this driver is faster then the Epson Germany drivers, and adds some print head alignment and cleaning utilities in the properties notebook. It also supports 1440x720DPI resolution (apparently in all paper sizes). Actual driver settings are determined by Mode selected(economy,Text/Graph, Photo and Advanced Photo) and Media Type(varies based on Mode but includes Plain Paper, Inkjet Transparencies, Photo Quality Glossy paper, Photo Paper, and Photo Quality Inkjet paper) (This driver reports itself as Driver Version 30.544."

A 12-08-98 7:00:00p 2479532 epomni.exe
A 6-01-98 7:00:00a 414224 ephd001.dll
A 11-01-98 9:10:00a 1242992 ephd002j.dll
A 11-01-98 9:10:00a 851328 ephd002k.dll
A 6-01-98 6:00:00a 538400 epht0016.dll
A 11-01-98 9:10:00a 652144 epht002m.dll
A 6-01-98 6:00:00a 92206 epmw001.dll
A 11-01-98 9:00:00a 159381 epmw003.dll
A 11-01-98 10:00:00a 428601 epomni.drv
A 12-08-98 2:15:00p 602 epomni.lst
A 4-01-97 7:00:00a 15581 eprs001.dll
A 4-01-97 7:00:00a 51408 eput001.dll
A 3-03-94 5:14:28p 2329 license
A 12-08-98 2:15:00p 3107 readme


This driver can be downloaded from the following locations.

FTP
IBM Device Driver PAK
ftp://service.boulder.ibm.com/ps/products/os2/os2ddpak
ftp://ftp.software.ibm.com/ps/products/os2/os2ddpak

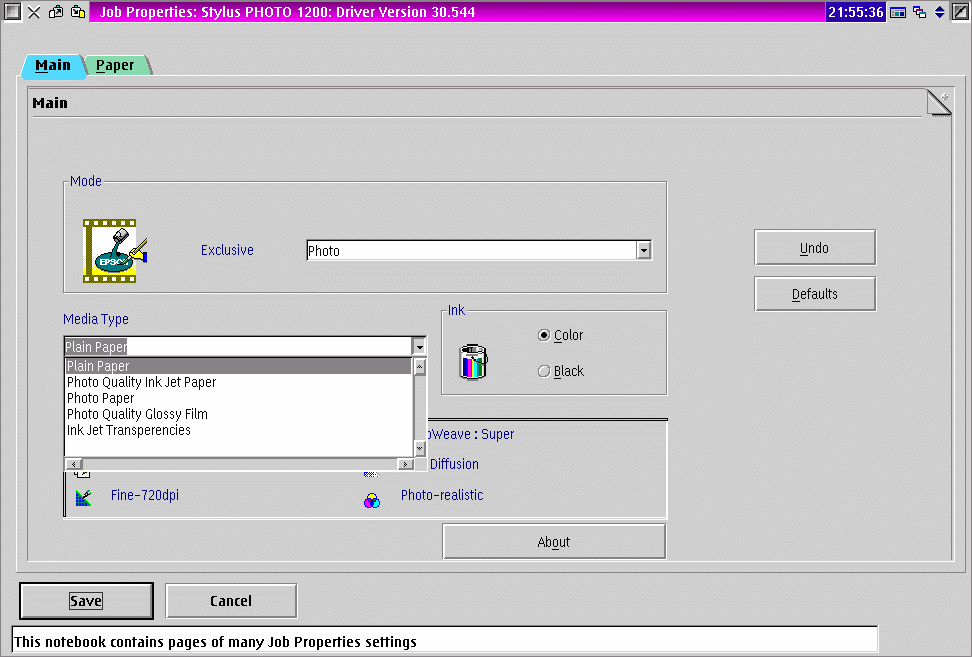

Epson 2

There is no Readme file with this driver. Only models supported by this package are the Stylus 640, 740, 900, and the stylus photo models 750 and 1200. Installing the driver shows a driver version 30.544(same as the EPOMNI) but the Printer Properties page is blank. The job properties page looks the same as the EPOMNI driver.
A 9-28-99 11:37:00p 3626080 ep2en.zip
A 7-01-99 4:00:00a 1392368 ephd003q.dll
A 7-01-99 4:00:00a 1716464 ephd003t.dll
A 7-01-99 4:00:00a 995616 epht003n.dll
A 7-01-99 4:00:00a 506432 epht003o.dll
A 7-01-99 4:00:00a 1021840 epht003v.dll
A 7-01-99 4:00:00a 168997 epmw004.dll
A 7-01-99 5:00:00a 4358 epomni.ea
A 7-01-99 5:00:00a 388154 epomni2.drv

This driver can be downloaded from the following locations.

FTP
IBM Device Driver PAK
ftp://service.boulder.ibm.com:/ps/products/os2/os2ddpak
HTTP
IBM Device Driver PAK
http://service.software.ibm.com/os2ddpak/html/printers/epsoname/index.htm

Model Number and OS/2 Driver Version Cross Reference Tables

Epson Printer Model-Driver Cross Reference

Epson Black Only Printers
Model Number
Omni Version
1011
1020
EPOMNI
Epson 2
Stylus 300
30.702
X
X
-
-
Stylus 400
30.702
X
X
-
-
Stylus 800
30.702
X
X
-
-
Stylus 800+
30.702
X
X
-
-
Stylus 820
30.702
-
-
-
-
Stylus 1000
-
X
X
-
-
Stylus 1500
30.702
X
X
-
-
Ink Cartridge-Dual Black - Model number T003012
Model Number
Omni Version
1011
1020
EPOMNI
Epson 2
Stylus Color 900
-
-
-
-
X
Stylus Color 900G
-
-
-
-
-
Stylus Color 900N
-
-
-
-
-
Epson Stylus Color Printers
Model Number
Omni Version
1011
1020
EPOMNI
Epson 2
Stylus Color
30.702
X
X
-
-
Stylus Color Pro
30.702
X
X
-
-
Stylus Color Pro-XL
30.702
X
X
-
-
Stylus Color Pro-XL+
30.702
X
X
-
-
Stylus Color II
30.702
X
X
-
-
Stylus Color IIs
30.702
-
-
-
-
Stylus Color 200
-
-
-
-
-
Stylus Color 400
-
X
X
-
-
Stylus Color 440
-
-
-
-
-
Stylus Color 500
-
-
-
-
-
Stylus Color 600
-
X
X
X
-
Stylus Color 640
-
-
-
-
X
Stylus Color 660
-
-
-
-
-
Stylus Color 740
30.702
-
-
-
X
Stylus Color 740i
-
-
-
-
-
Stylus Color 760
-
-
-
-
-
Stylus Color 800
-
X
X
X
-
Stylus Color 800N
-
-
-
-
-
Stylus Color 800Ne
-
-
-
-
-
Stylus Color 850
-
-
-
X
-
Stylus Color 850Ne
-
-
-
-
-
Stylus Color 860
-
-
-
-
-
Stylus Color 900
-
-
-
-
X
Stylus Color 900G
-
-
-
-
-
Stylus Color 900N
-
-
-
-
-
Stylus Color 1160
-
-
-
-
-
Stylus Color 1500
-
X
X
-
-
Stylus Color 1520
Wide Format
30.544
30.569
30.702
X
X
X
-
Stylus Color 3000
Large/Wide Format
-
X
X
X
-
Stylus Pro-5000
Large/Wide Format
-
-
-
-
-
Stylus Pro-9000
Large/Wide Format
-
-
-
-
-
Stylus Scan 2000
-
-
-
-
-
Epson PHOTO Printers
Model Number
Omni Version
1011
1020
EPOMNI
Epson 2
Stylus Photo
-
X
X
X
-
Stylus Photo EX
-
-
-
X
-
Stylus Photo 700
-
-
-
X
-
Stylus Photo 750
-
-
-
-
X
Stylus Photo 1200
-
-
-
-
X
