Video Streaming on OS/2 and eCS

by Andreas Peters, © April 2006


The Dbox is a standalone digital broadcast receiver for receiving DVB. It is capable of running Linux and, among other things, streaming raw MPEG2 over a network.

It is based on NEC's 78K/0 series microcontroller

Neutrino is both the name of the Linux port that runs on Dbox, and the GUI application.

An edited translation of Neutrino from the German Wikipedia:

Neutrino is a graphical user surface designed for easy operation of the DBox2. Neutrino is based on the Client/Server principle and is designed for use with Linux. The architecture of Neutrino controls the Dbox2 through server requests rather than direct control. Thus Neutrino can, in principle at least, control servers from arbitrary hardware, e.g., PCs or other set top boxes.

It is unrelated to QNX's Neutrino RTOS.

Half a year ago I decided to obtain digital TV. I spent a long time searching for a suitable receiver which also had to support cable TV. During my research on the Internet, I came across DBox2 by Sagem, a slightly older digital receiver that was available at eBay quite inexpensively.

The reason for my decision was that the DBox2 is in fact a small computer with an RS232 serial port (DB-9), ethernet network interface card (RJ45), PC Card interface, and modem (RJ11). Furthermore, it runs Linux quite well which for the DBox is called Neutrino. It is quite colorful and also an excellent replacement for the original old, slow firmware.

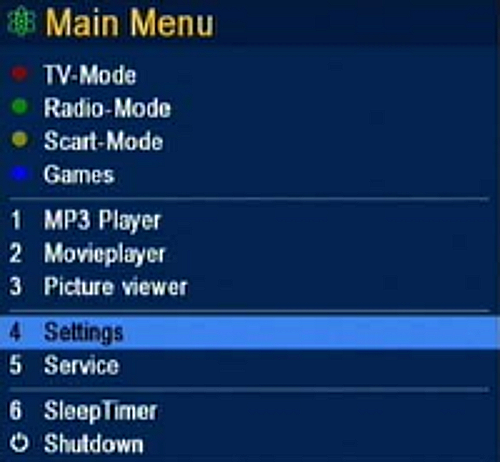

Neutrino Main Menu
Fig. 1. Dbox2 Neutrino, main menu [Larger Image]

Neutrino has many features that turn the DBox2 into a true multimedia terminal. If you want to make the most of Neutrino, you have no choice but to connect the DBox2 to a network. That way it is possible to listen to your MP3 collection on your PC, or Shoutcast radio stations from the Internet via your stereo. Pictures from the last vacation that are stored on a PC can be viewed on the TV, as well as videos.

In this article I won't discuss my holiday videos, but rather how to use eComStation as an extension for Neutrino. In brief, using eCS as a digital video recorder. In this context, two programs are reviewed, XMediaGrabber and ProjectX. Both run on eComStation, both are capable of recording videos in different formats, and they both have options to create output with different quality.

XMediaGrabber and ProjectX

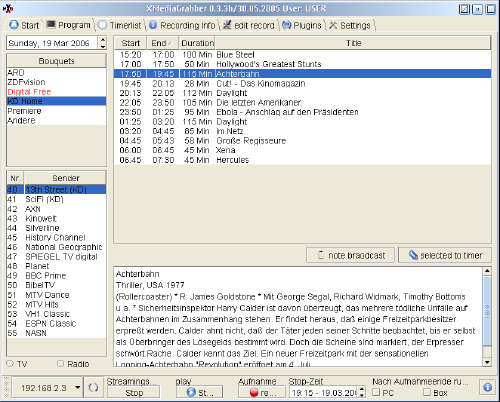

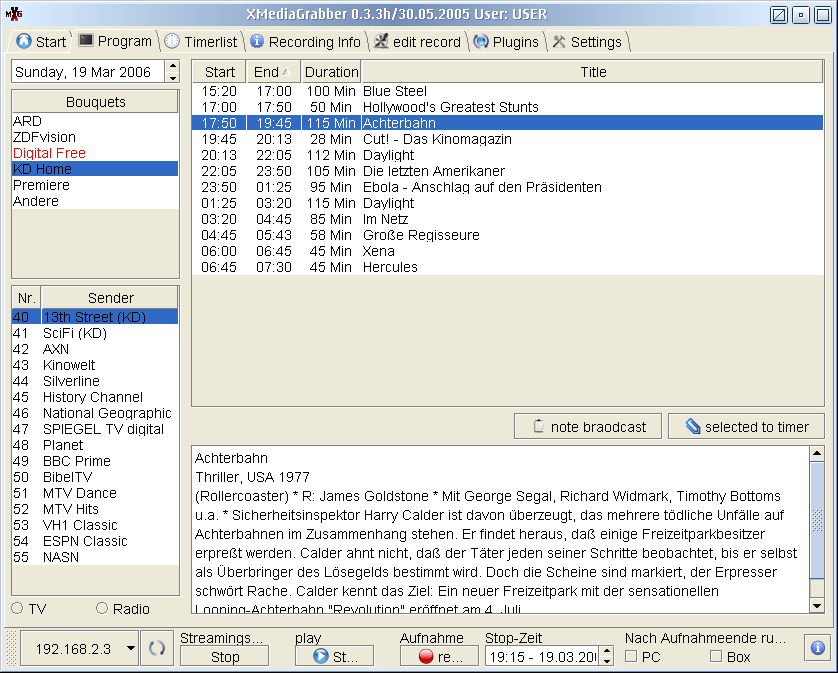

XMediaGrabber: station list
Fig. 2. XMediaGrabber, station list [Larger Image]
Dbox2 sends the streams direct from a TV broadcaster to your computer. That format is not very useful. So a grabber engine converts it to another format such as MPEG or DVD (VOB).


XMediaGrabber is a Java application which comes with its own grabber engine but is also capable of using external ones. The good thing about this application is that it allows you to conveniently program the DBox2 timer from your PC. You can then go and spend some time at your favorite bar while DBox2 automatically records the desired movies—as long as you don't turn off your computer, that is, since it is required for storage.

XMediaGrabber reads an XML file from the webserver (included in Neutrino) to get the video and audio PID for a TV channel. After that, XMediaGrabber connects the Dbox2 via SOCKS. The audio and video PID is the SOCKS port. Then the Dbox2 sends the video and audio stream.


XMediaGrabber needs Java version 1.4.2 and the external tool ProjectX.


Before installing the software, a directory tree must be created, e.g., like this:


XMediaGrabber can be simply extracted into the XMediaGrabber directory.

ProjectX, on the other hand, needs more attention. This package has to be compiled first. For that purpose, ProjectX has to be extracted to the ProjectX directory and then compiled using the following batch file (a pre-compiled version is available from my home page). Some path changes may be necessary.

set PATH=%JAVA_HOME%\bin
mkdir build
javac.exe -O -classpath lib\commons-net-1.2.2.jar -d build @sources.lst
copy resources\*.* build
jar.exe cfvm ProjectX.jar MANIFEST.MF -C build .

If the above completed without errors, there now should be a file called ProjectX.jar.


Once all required applications have been installed, XMediaGrabber needs to be set up. First, run it the following way:

java -jar XMediaGrabber.jar

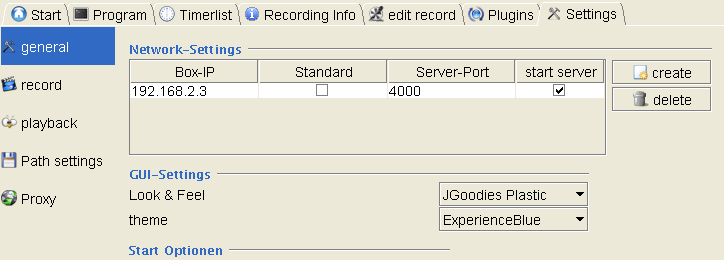

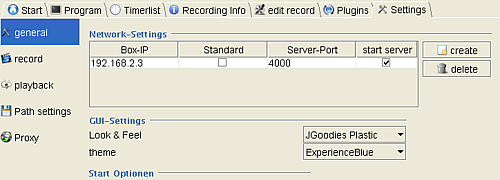

XMediaGrabber: Setup Options
Fig. 3. XMediaGrabber, basic setup options [Larger Image]

On the Settings page, enter the DBox2's IP address.

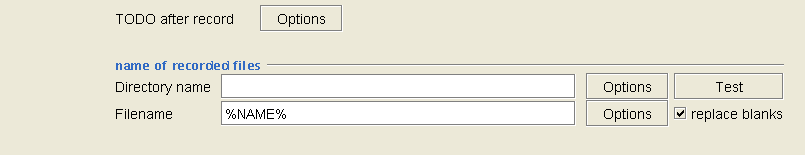

XMediaGrabber: recording settings
Fig. 4. XMediaGrabber, recording settings [Larger Image]

Next, delete the directory name in the Record section and ensure that Filename contains just %NAME%. Enable the replace blanks option.

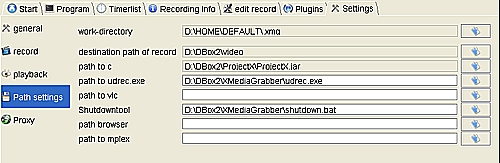

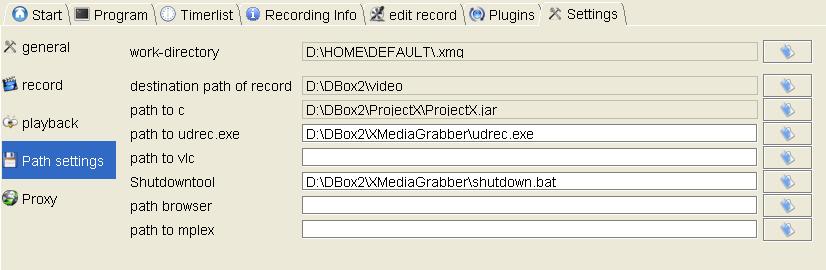

XMediaGrabber: div. Pfadeinstellungen
Fig. 5. XMediaGrabber, assorted path settings [Larger Image]

Finally, you specify where XMediaGrabber stores the videos. In the destination path of record entry field, enter the Videos directory you created above in the Installation section.

Recording a movie

XMediaGrabber: Recording Menu

Fig. 6. XMediaGrabber, Recording Menu [Larger Image]

XMediaGrabber can record videos in two ways.

Whatever method is used to start recording, the DBox2 searches for a streaming server. In our case, it is XMediaGrabber which promptly begins to record the movie.

After recording has finished, the video and audio files are further processed by ProjectX automatically.


While testing several other applications, I noticed that many of them frequently have problems with image and audio synchronisation. That is, audio is played later than the corresponding image, or vice versa. None of this has occurred with XMediaGrabber.

Converting files to DVD using IfoEdit


Fig. 7. IfoEdit

Using IfoEdit, video and audio can be reassembled and inserted into a DVD structure. To do so:

To specify the target directory:

At last, writing to DVD

DVDDAO and CDRecord are required to do this.

Change to the directory where IfoEdit placed the files it created. In this case, C:\temp\MyVideo. There, run mkisofs [installed as part of CDRecord] from the command line:

mkisofs -dvd -udf --split-output -o video.iso .
Don't forget the period at the end!

Next, you can write the files video.iso_01 up to video.iso_0N to a DVD using DVDDAO:

dvddao -d a,b,c video.iso_01 video.iso_02 ... video.iso_0N

Of course, you have to insert the correct values of your writer for a,b,c. These can be found with:

cdrecord -scanbus 1>dvd-ids

In the dvd-ids file, you should find your DVD drive and an ID of three digits. Here, it looks like the following:

0,1,0     1) 'HL-DT-ST' 'DVDRAM GSA-4160B' 'A301' Removable CD-ROM

Okay! Now you should have a DVD with the movie that you recorded from the DBox2 that you can watch using your DVD player and TV.

Have fun!

Translation: Christian Hennecke
Editing: James Moe
