How to Create a Database Using Lotus Smartsuite
Part 6

by Arthur van Egmond, © October 2006

Arthur van Egmond lives in the Netherlands. He is married but doesn't have any children yet. He works for the government in the department of Social Security and his main job is to keep the client computers up and running. His first experience with OS/2 was with version 2.1. Since then he upgraded to eCS 1.2. He owns or at least has seen nearly all versions.

Welcome back. Thanks for joining me in our tour through creating a database using Lotus Smartsuite. Today we finish our main database Movies.

Over the past issues we have created a great deal of our database.

We have the forms input (which is not completed yet), list, extra info, dvdregion, help (which is not completed yet), find (which is not completed yet), print (which is not completed yet), actors, sort (which is not completed yet), and explanation.

So what remains to do?

Let's start by creating two empty reports. Then we finish the incomplete forms. We continue with joining our databases so we can actually use them, adjust some of the fields in the input form, and finally create our reports.

Apparently, there is a lot of work to be done.

On with the Show

Create a report Printlist:

Create a report Printcard:

On the Input screen, create a button with the following parameters:

Table 3. Input screen, button parameters
Parameter Value
Width 2.50cm
Height 0.50cm
Top 8.00cm
Left 0.36cm
Macro Sort

On the Input screen, create a second button with the following parameters:

Table 4. Input screen, second button parameters
Parameter Value
Width 2.50cm
Height 0.50cm
Top 13.0cm
Left 0.36cm

On the Help form, create a button, and use the macro Close1.

On the Print form, create three buttons:

Table 5. Print form, parameters for three buttons
Button Width Height Top Left Color Macro
Printcard 0.5cm 0.5cm 1.25cm 4.5cm background create: printcard, view - switch to printcard / printpreview / zoom - to actual size )*
Printlist 0.5cm 0.5cm 2.5cm 4.5cm background create: printlist, view - switch to printlist printcard / printpreview / zoom - to 85% )*
Close 2.5cm 0.5cm 6cm 0.25cm - Close1
* Sometimes, Approach displays some strange behaviour. For instance, when you create a macro to a report and use only view-switch current view to [name of the report], Approach automatically enters design mode. By adding the options printpreview and zoom to actual size, Approach switches to design mode and immediately to browse mode. Maybe the developers of Approach thought that when you want to go to a report you want to add more information to it. We don't, so we use this solution.

On the Sort form, create five macros:

Table 6. Sort form, parameters for five macros
Name Command Top Left
Sorttitle sort: Select title and click add. Use view - switch to input, and click OK. 1.25cm 6cm
Sortgenre sort: Select genre and click add. Use view - switch to input, and click OK. 2cm 6cm
Sortyear sort: Select releaseyear and click add. Use view - switch to input, and click OK. 2.75cm 6cm
SortID sort: Select MovieID and click add. Use view - switch to input, and click OK. 3.5cm 6cm
Close use macro close1 6cm 0.25cm

For the sort buttons, use the same kind of buttons that we created on the Print form. The close button is still the same like all other buttons.

On the Find form, change the new macro for new1 by creating a new macro with the following parameters:

Add the sort, internet, actors, and extra info buttons. Use the same location and style as on the Input form.

The Gathering

Now that all our forms are complete, we join our databases.

We now have succesfully joined our databases, but we still cannot use them.

Basically, we are finished.

Sort and Menu

Now let us add a default sort to our database:

Okay, I forgot that we need to create another macro: My Menu

On all tabs, select My Menu as menu bar using the Basic tab in the properties notebook.

Okay, I just have noticed one or two things. Change the field labes of:


Now let's create the reports to complete our database.

The List

The first report we are going to make is Printlist.

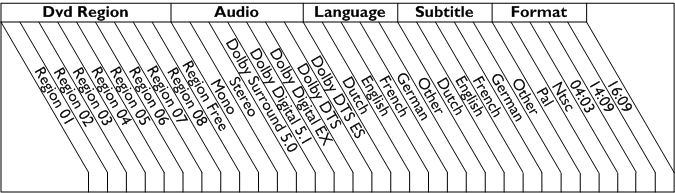

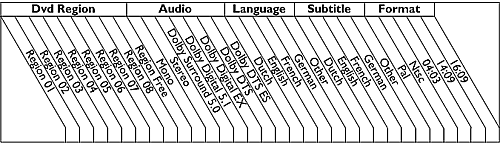

I did some work for you by creating this picture:

Picture for print list report

Fig. 1. Image to insert into Printlist report [Larger image]

Again we have a problem that not all the fields fit on this report. Therefore I added the most important fields:

Table 8. Printlist report, fields to add
Field name Width Height Top Left Font Property
MovieID 1.75cm 0.5cm 5.25cm 0.61cm Gill Sans 10 Read Only
Title 6.00cm 0.50cm 5.25cm 2.40cm - Read Only
Genre 5.00cm 0.50cm 5.25cm 8.47cm - Read Only
Time 1.75cm 0.50cm 5.25cm 13.51cm - Read Only

Set all the fields mentioned in the picture to checkbox and use Gill Sans 10. This time, use a flat checkbox with the parameters:

Table 9. Printlist report, checkbox parameters
Parameter Value
Width 0.50cm
Height 0.50cm
Top 5.25cm
Left 15.35cm

Don't forget to type Yes under Checked value.

Align all other checkboxes to the position where the text from the picture stops. They all have the same top offset, only the left position is different.

As you can see I chose the most important fields concerning the movie. This list we can keep near our DVD player to lookup a certain movie if we want to see it.

Now that the nasty work is done (all those checkboxes were quite some work, weren't they?), we can focus on what title we want in the header. We also need to add two buttons. And we can add the current date with the text Printed on: in front of it, plus a page number.

As title, use My Movies and the following parameters:

Table 10. Printlist report, header parameters
Parameter Value
Width 9.00cm
Height 1.50cm
Top 1.00cm
Left 2.13cm
Font Gill Sans 36 Bold
Style none
Fill color none
Border color none

Under this create two textboxes:

Table 11. Printlist report, textbox parameters
Text Width Height Top Left Options
Print this list 3.50cm 0.50cm 3.00cm 0.75cm Non printing, Show in printpreview
Return to input screen 3.50cm 0.50cm 3.50cm 0.75cm Non printing, Show in printpreview

Now create the following two buttons:

Table 12. Printlist report, button parameters
Button Width Height Top Left Options Macro
Top 0.5cm 0.5cm 3.0cm 4.5cm Non printing, Show in printpreview print1 (Command-Print)
Other 0.5cm 0.5cm 3.5cm 4.5cm Non printing, Show in printpreview Close1

Add the following text:

Table 13. Printlist report, text field parameters
Text Width Height Top Left
Pagenumber 3.50cm 0.50cm 4.00cm 0.75cm
This list is printed on 3.50cm 0.50cm 4.50cm 0.75cm

And finally add the following functions:

Table 14. Printlist report, functions
Text Width Height Top Left
pagenumber 2.50cm 0.50cm 4.00cm 4.50cm
current date 2.50cm 0.50cm 4.50cm 4.50cm

Now that our list report is finished, we can continue with our card report.

The Card

Again, it is a lot of work to set all fields into place. As we did in the contacts database, we will not use a header. Again, we create two cards on one page, therefore we need to draw a line so we can position the body:

Now we can resize the body again so it lines up with the hairline. If the hairline disappears, you have to resize the body again. Check the top offset of the hairline, this changes automatically if you make the body too small. Continue to change the body size and the top offset of the hairline until they line up. That's good, now the body is exactly half of the printing area. When you add more records, Approach shows two records on one page, and if you can print double-sided, you even save more paper. :-)

Now let's add some fields and position them. Use Gill Sans 10 for the font. Make all the fields read-only.

We start with the cover.

Put the cover into position:

Table 15. Printcard report, cover position
Parameter Value
Width 2.5cm
Height 3.5cm
Top 2.0cm
Left 1.0cm

For now we use a hairline as border just to know where the location is. Later, when all fields are in place, we remove the border. I think it looks better without a border.

Place the fields at the following positions:

Table 16. Printcard report, field positions
Field name Width Height Top Left
title 6.0cm 0.5cm 2.0cm 4.5cm
genre 6.0cm 0.5cm 2.0cm 11.0cm
numberofdisk 2.5cm 0.5cm 2.0cm 17.5cm
dvdextra 2.5cm 0.5cm 3.0cm 4.5cm
dvdformat 2.5cm 0.5cm 3.0cm 8.0cm
time 2.5cm 0.5cm 3.0cm 11.0cm
releaseyear 2.5cm 0.5cm 3.0cm 14.5cm
actors01 6.0cm 0.5cm 4.0cm 4.5cm
actors02 6.0cm 0.5cm 4.0cm 11.0cm
actors03 6.0cm 0.5cm 5.0cm 4.5cm
actors04 6.0cm 0.5cm 5.0cm 11.0cm
movieID 2.5cm 0.5cm 6.0cm 1.0cm
actors05 6.0cm 0.5cm 6.0cm 4.5cm

Draw a hairline under all the fields with the same width and a top offset of T=3.55cm, T=4.55cm, etc. We can now remove the hairline around the cover field. Later in this position we see the cover we have imported into the database.

So much for the easy part. As you can see, I didn't insert the memo fields, the imdbcode field, and the borrowedto field into this report. You can if you want, but why should you? If you do it means that everytime there is a change in the record for the borrowedto field, you should reprint this page. The imdbcode field is just a quick option to see more about this movie so this also adds no value to the record since you need the computer to get to the IMDB site.

Now for the hard part. We add all the region, audio, language, subtitle, and format fields in the remaining space. Also, we need to add two non-printable buttons with text labels.

Well, it's not so difficult, only a lot of work. :-) For all lines we use a hairline and of course we use Gill Sans 10 for the font.

Draw a rectangle with the following parameters:

Table 17. Printcard report, rectangle parameters
Parameter Value
Width 9.0cm
Height 1.5cm
Top 7.5cm
Left 1.0cm

Draw two horizontal lines with the following parameters:

Table 18. Printcard report, line parameters
Line Width Top
1 9.0cm 8.0cm
2 9.0cm 8.5cm

Draw a textbox with the text Dvd Region:

Table 19. Printcard report, Dvd Region text box parameters
Parameter Value
Width 9.0cm
Height 0.5cm
Top 7.0cm
Left 1.0cm
Justification centered
Font weight bold

Draw two text boxes:

Table 20. Printcard report, text box parameters
Text Width Height Top Left
01 1.0cm 0.5cm 7.5cm 1.0cm
02 1.0cm 0.5cm 7.5cm 2.0cm

For the second box, use a borderline on the left and right side only.

Now all uneven numbers look like textbox01 and all even numbers look like textbox02. The last box contain the text Free. (Remember that we had regions 1 to 8 and region free.) This box looks like the 01 box.

Under the numbers we put the fields as checkboxes at the following positions:

Table 21. Printcard report, checkbox positions
Checkbox Width Height Top Left
1 0.50cm 0.50cm 8.50cm 1.25cm
2 0.50cm 0.50cm 8.50cm 2.25cm
3 0.50cm 0.50cm 8.50cm 3.25cm
4 0.50cm 0.50cm 8.50cm 4.25cm
5 5.25cm 6.25cm 7.25cm 8.25cm

Don't forget to make all the fields read-only.

We create the other fields and boxes the same way:

Table 22. Printcard report, field positions
Box Width Height Top Left Text
Audio 7.0cm 1.5cm 7.5cm 11.0cm Mono, Stereo, Ds 5.0, Dd 5.1, Dd-EX, D-Dtd, Dts-ES
Language 5.0cm 1.5cm 9.5cm 1.0cm -
Subtitle 5.0cm 1.5cm 9.5cm 7.0cm -
Format 5.0cm 1.5cm 9.5cm 13.0cm -

If you see a little distortion in the rectangle, select all checkboxes, click with the right mouse button on one of the boxes and from the popup menu select Arrange > Send to back.

With all the text and fields in place we only need to add two buttons. Again we make sure that these buttons and the text in front of these buttons show up in our output. So select the Non-printable and Show in print preview options.

Place the following text boxes:

Table 23. Printcard report, text box positions
Box Width Height Top Left
Print this card 3.5cm 0.5cm 11.5cm 1.0cm
Return to input screen 3.5cm 0.5cm 12.0cm 1.0cm

Add the buttons and line them up with the text. (Remember you can use your style.) Apply the macros printcard and close1.

Okay. Congratulate yourself for achieving this goal. For as far as my knowledge goes we have done all we needed to. Now it's time to test our databases to see if everything works.

1, 2, 3, Testing. . .

Before you do your testing, make a backup of your empty databases. If you do so, you can later delete your databases and start using the empty ones without having to delete all records and resetting the counter.

Let's add two records to our Contacts database. Just use fake names, or if you please, use real names. :-)

Okay, I found the first problem. The fields for the telephone numbers are not correct. I have to add two more numbers but this is not possible. So let's adjust the fields.

Now maybe you wonder how can I adjust the fields? We have stripped all contents of the menu. Well, maybe you have seen them, the keybord short-cuts. Press [Ctrl-D].

In the toolbox, click on the Fields button and select Field definition. Let us change the number to 18 for the telephone fields. Click OK. Now I'm not pleased with that format either. The country code for the Netherlands is 031 but I did not see the leading zero. This is due to the # in the field definitions. Let's change the field definition to this:

>6 (000)" "000-000000|=6 000-000000

Of course, you can adjust this field for you own country. Now for the FAX number we can use the same layout, so adjust the format for the FAX number as well.

Explanation: Between the brackets is the country code, then we get the area code without the leading zero and finally we get the phone number. As far as I know this international standard. Correct me if I'm wrong.

As far as the cellphone number is concerned it would look like this in the Netherlands:

>6 (00)" "00-00000000|=6 00-00000000

Now for the cellphone number you normally don't put the leading zero in front, so it would be the country code without the leading zero and then the whole cellphone number.

Anyway, if you want to, you can skip the country code but for me, with an international family this is a bit difficult. If you don't want any trouble at all, adjust to numeric-general, then you can type anything you like, as long as they are numbers.

Click on View > Show taborder. Now you can see a lot of numbers appear. Change the value 17 on the homepage field to 15. Automatically, all following fields are adjusted as well. Select View > Show taborder to toggle the taborder off.

I'm satisfied now. Press [Ctrl-B]. Click Close and Yes to save the changes. Now add some records in the databases Genre, DvdExtra, DvdMedia.

For now it's not important what the contents are. If you use the [Tab] key, Approach creates a new record for you every time you tab out of the last field.

Now that we have filled the databases let's go to our main database Movies.

I did notice a few things in this database as well. The actor fields do not start with a capital letter. This is handy so you don't have to use the [Shift] key all the time. Let's adjust the fields to First Capitalized.

After you have pressed [Ctrl-D], you have to select View > Show viewtabs. I noticed that the macros PalNtsc and NtscPal are not working for me.

Okay, I have looked into this and I think it's not working for you either. Let's adjust the two macros so they work like we expect.

When you open the database again, you can see that the switch is working now.

Read, Set, Go. . .

You can now replace your test databases with the empty ones.

You can use the following records in the databases:

Table 24. Records to add to databases
Database Records
DvdMedia DVDROM, DVD+RW, etc.
DvdExtra Complete, Movie Only, etc.
Genre Action, Adventure, etc.

If you do it like this you only have to type it once, you can select the appropriate record in the Movies database.


Okay, this ends our trip through Approach. I hope you enjoyed creating these databases and, of course, you can expand them by creating even more databases. Maybe you have a large MP3 collection or a large number of books. Think about compact disks or other media like LP or Minidisk.

For those who tried really hard but did not quite get the feeling, it could be my explanation of things, but if you really want to use these databases, there is some good news: the complete set is available.

I take this opportunity to thank my dear friend Michel who helped in creating and modifying these databases to what they are today.

Maybe we will meet again.

Editing: James Moe

Example database files: databases.zip
